How to select a workable system? You will need:
♦ At least one Doorbell Camera (Max. 4). If you add more than one doorbell, add a DBC-4.
♦ Up to 16 CRONUS monitors. Star connection: add one DBC-4 for every four additional monitors. Daisy Chain connection: you do not need the DBC-4 device
♦ One combined multi power supply PS4+DPS for one-monitor system or PS5+DPS for a bigger system
♦ Additional items like CCTV cameras. Up to six CCTV cameras per system. Add one DCU CCTV Interface for every two CCTV cameras (Max. 3) DCU provides power for CCTV cameras which could be very handy.
DIGITAL 7 inches Touch Screen Image Recorder or no memory version
♦ Dimensions: W225 x H125 x D23mm
♦ Master monitor has internal memory plus a slot for removable SD card (up to 16Gb); records series of pics, no audio ♦ Photo frame function
♦ Night Ring function ♦ Clock and calendar
♦ OSD (on screen) menu selection: adjust volume, colour, brightness, scene mode, change ringtone and so on
♦ Loud speaker
♦ 15 different ringtones
♦ Allows you to check outside and talk to people outside at any time you wish to, even if no one rings the bell
♦ Intercom function by rooms (Name List) or to all of the monitors (Inner Call) among all monitors in the system
♦ Piano Black
♦ Mounting type: surface mount
Doorbell cameras
Model 591 Surface Mount
♦ Dimensions: W90 x H175 x D25mm.
♦ Maid of stainless steel. Comes with rain cover
♦ Connects directly to up to 2 electric or electro-magnetic locks
♦ Camera: 1/4 inch Sony CCD
♦ Resolution: 420 TV lines
♦ Viewing angle: 76° field of view- camera angle slightly adjustable
♦ Min. illumination: 1.2 Lux
♦ Night vision with 6 white LED
♦ Environment Temperature: -10 to +45C
♦ Humidity: 45% to95%

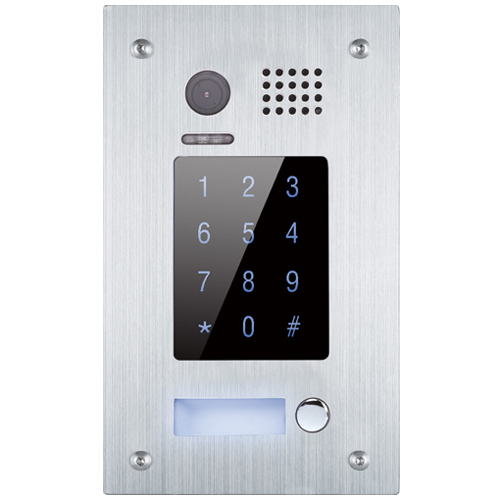

Model 596 Keypad Surface Mount or Flush Mount version
♦ Surface Mount Dimensions: H180 x W90 x D26mm
♦ Flush Mount Dimensions: H220 x W119 x D52mm
♦ Comes with its own power supply
♦ Digital touch keypad with blue background light
♦ Connects directly to one electric or electro-magnetic locks
♦ Camera: 1/3 inch Sony CCD
♦ Resolution: 420 TV lines
♦ Viewing angle: 76° field of view- camera angle slightly adjustable
♦ Min. illumination: 1.2 Lux
♦ Night vision with 6 white LED
♦ Environment Temperature: -10 to +45C
♦ Humidity: 45% to95%

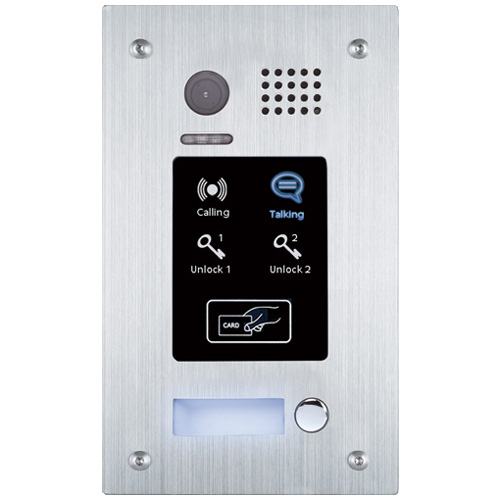

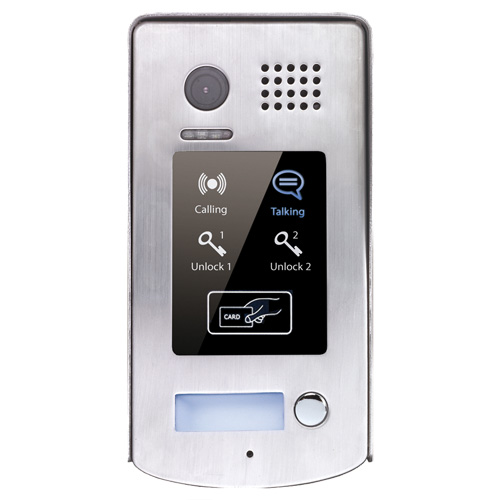

Model 596 Proximity Reader Surface Mount or Flush Mount version
♦ Surface Mount Dimensions: H180 x W90 x D26mm
♦ Flush Mount Dimensions: H220 x W119 x D52mm
♦ Comes with its own power supply
♦ Digital Proximity Reader with blue background light
♦ Comes with 5 key-fobs by default
♦ Connects directly to one electric or electro-magnetic locks
♦ Camera: 1/3 inch Sony CCD
♦ Resolution: 420 TV lines
♦ Viewing angle: 76° field of view- camera angle slightly adjustable
♦ Min. illumination: 1.2 Lux
♦ Night vision with 6 white LED
♦ Environment Temperature: -10 to +45C
♦ Humidity: 45% to95%

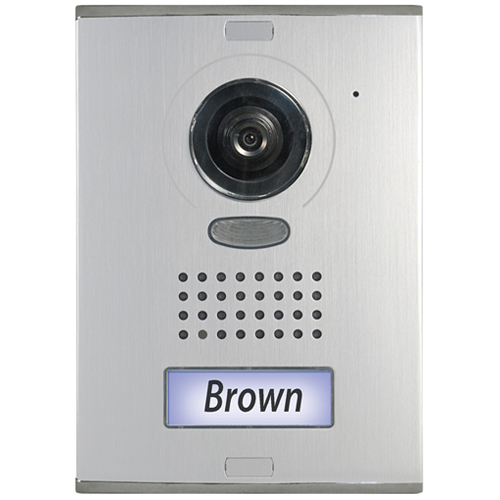

Model 598 Flush Mount
♦ Dimensions: W128 x H177 x D35mm
♦Made of brushed Aluminium
♦ Connects directly to one electric or electro-magnetic locks
♦ Camera: 1/3 inch Sony CCD
♦ Resolution: 420 TV lines
♦ Video signal: 75V 1Vp-p
♦ Viewing angle: 76° field of view- camera angle slightly adjustable
♦ Min. illumination: 1.2 Lux
♦ Night vision with 6 white LED
♦ Environment Temperature: -10 to +40C
♦ Humidity: 45% to95%

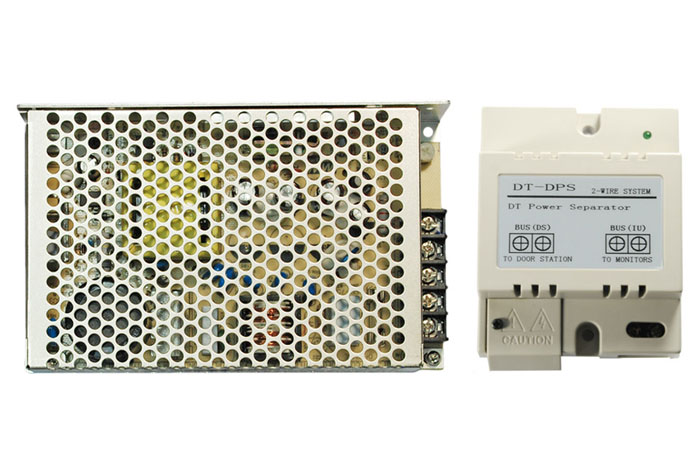

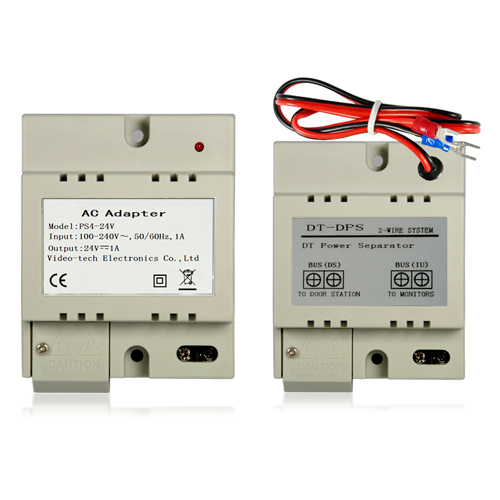

PS4+DPS or PS5+DPS Combined Power Supply
♦ PS4+ DPS can power ONE monitor and ONE doorbell
♦ PS5+DPS combined power supply can power up to 16 monitors and 4 doorbells.
♦ Star connection requires DBC-4 device. Daisy chain connection requires PS5+DPS only (no DBC-4)
♦This system transmits video and audio through the power cable. No other cable is required.
♦ The best video quality with 0.5-2mm twisted cable to ensure the video signal is strong.
♦ Minimum requirements 0.5mm twisted pair cable.
♦ For connection distances up to 150 metres between doorbell camera and power supply and another 150m between power supply and monitors.
♦ DBC-4 Distributor - you will need one of these for each FOUR monitors if you want to connect monitors in star connection rather than daisy chain.
♦ DCU CCTV Interface - you will need one of these for each TWO CCTV cameras you want to add to the system. Maximum of three per system (six CCTV cameras).

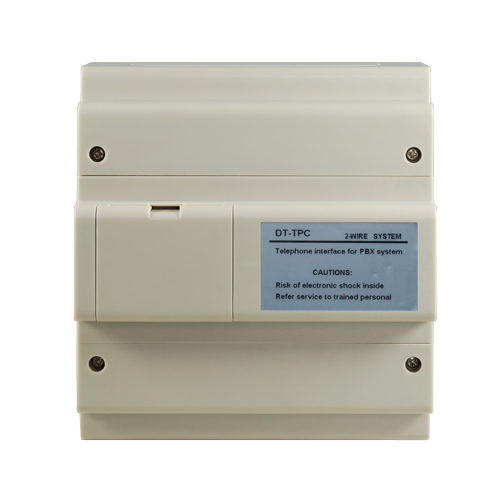

♦ TPC Telephone Interface- with this devise you can forward calls from your door station to a mobile phone. You can talk and even open the door via mobile phone!
♦ Standalone Proximity Reader - with this device you can have keyless entry to your house. You need an access key fob or key card to enter. You place the key fob or card in front of the reader, and it opens the lock
♦ Standalone Keypad - with this device you can have keyless entry to your house. You need a pin code (four numbers) to enter. Up to 250 people can have their own pin code.

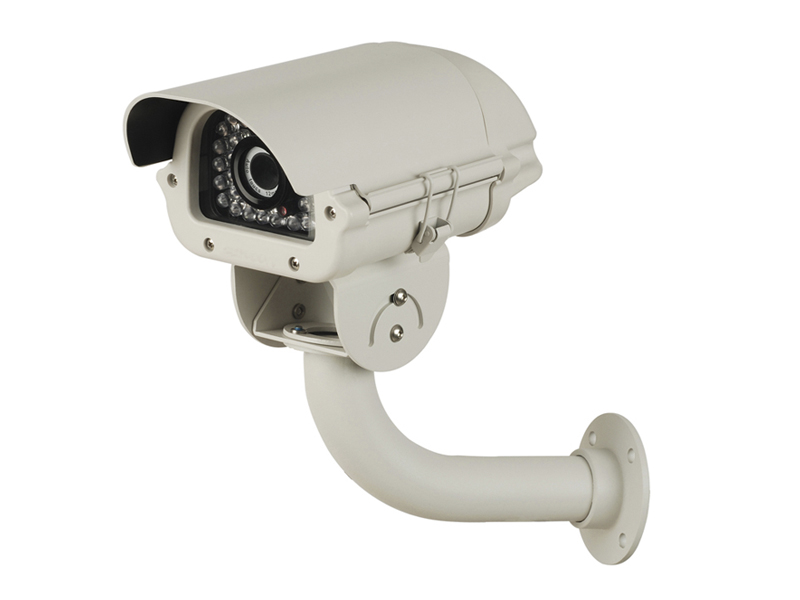

♦ CCTV cameras - industry standard CCTV cameras allow you to monitor your property. Up to six per system supported.

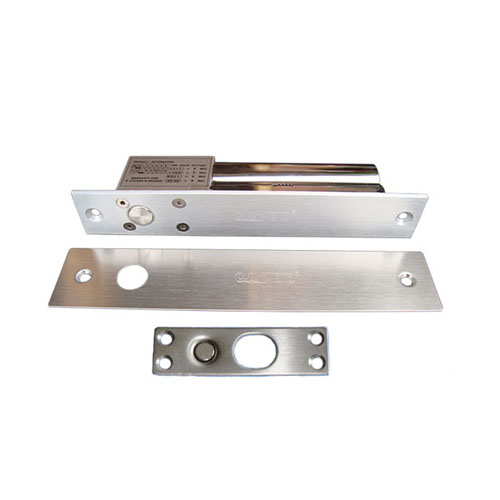

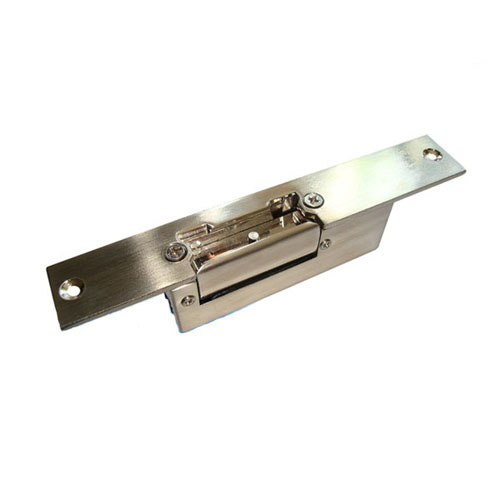

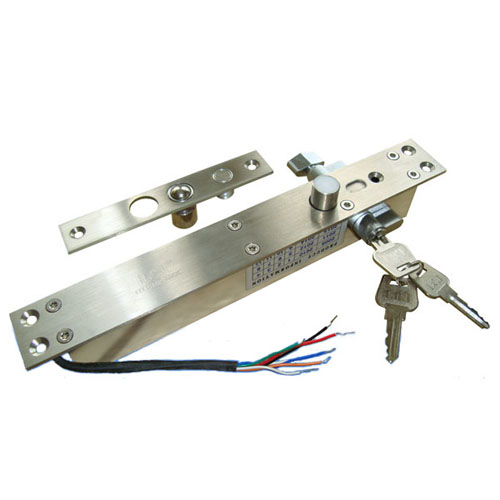

♦ Door Strikes and Bolt Locks - electric locks which you can open via your monitor for ease and security

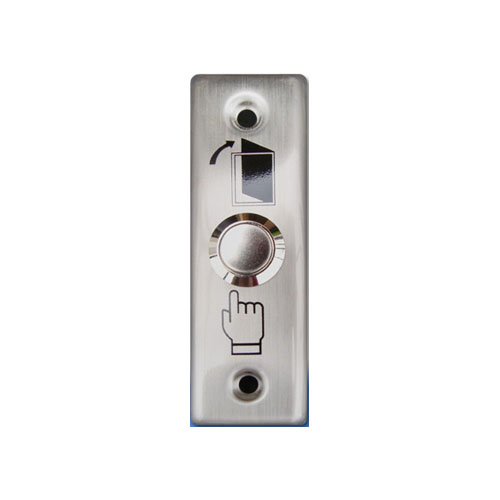

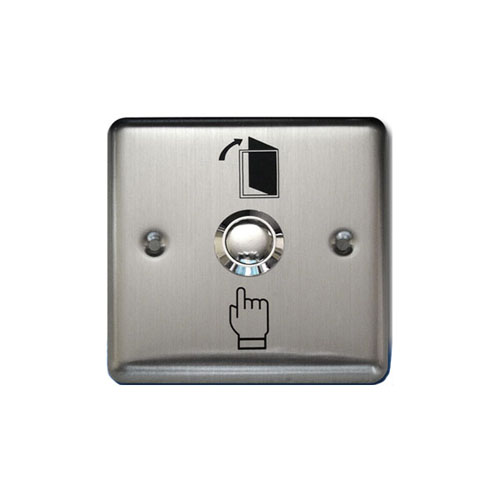

♦ Exit Buttons - You will need one of these inside your property if you have an electric lock

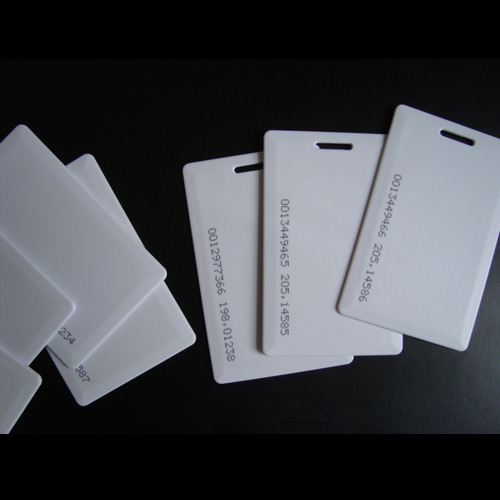

♦ Key Fobs and Proximity Reader Cards - you will only need these if the number of fobs or cards you need exceeds the ones which come by default with your system
