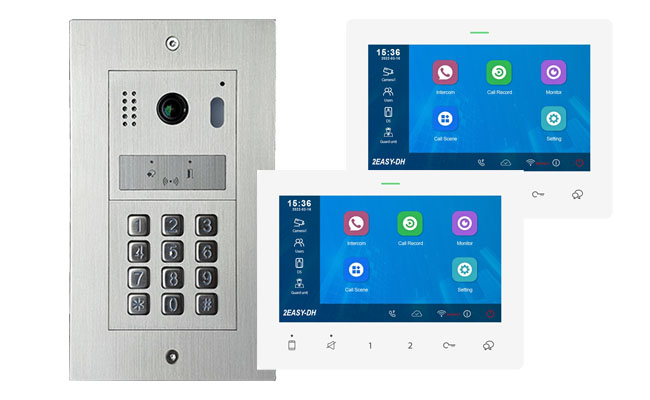

2-Flat Door Entry System Full Colour Night Vision Mobile App

Wi-Fi/IP 7-inch Image Recording Model DH7G. Receive video call to your smart phone. Full Duplex (2-way talking). Handsfree. Colour videoo

• Finish: Acrylic White • Dimensions: W139 x H186 x D13.8mm • Mounting type: surface mount • Resolution: 1024 x 600 pixels. 7-inches IPS full view angle TFT • 12 ringtones • Night Ring function • Clock and calendar • 'Do Not Disturb' function • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Intercom function among all monitors in one flat/apartment • Divert calls to your smart phone or tablet via WIFI or IP. Apps are available • Compatible with IP CCTV cameras which can be viewed on the monitor or the App



Video Door Station Model DH821KP with: Mechanical keypad. Full Colour Night Vision

• Finish: Stainless Steel • Dimensions: W132 x H232 x D45mm • Mounting way: Flush Mounted • Voice Enunciation • 1 port for electric or electro-magnetic lock and exit button • Camera: Colour 2.0 Mega pixel, wide angle 170-degree Fisheye • Full Colour Night vision • Weather Protection: IP65



PC7D Combo Intelligent power supply

• One per system is required • Multi protection: short circuit, overload, over voltage • Input Voltage: 100~240Vac • Rated Output Voltage: DC 28V+/-2V • Rated Output Current: 1.3A



See here: Connection Diagram



For iPhone IOS search Apple store for Tuya Smart Life

For Android click here: Tuya Smart Life





This system transmits video and audio through the power cable. No Polarity connection

• Recommended cables: Unshielded twisted pair, power flex multi-cores, speaker cable, CAT5/CAT6

• Minimum requirements 0.5mm cable up to 2mm (depends on distance)

• Working distances up to 150 metres between doorbell camera and power supply and another 150m between power supply and monitors



• DH-821 Doorbell Manual
• DH7G Monitor Manual
• DH-DBC4 Distributor Manual
• PC-9D PSU Manual
