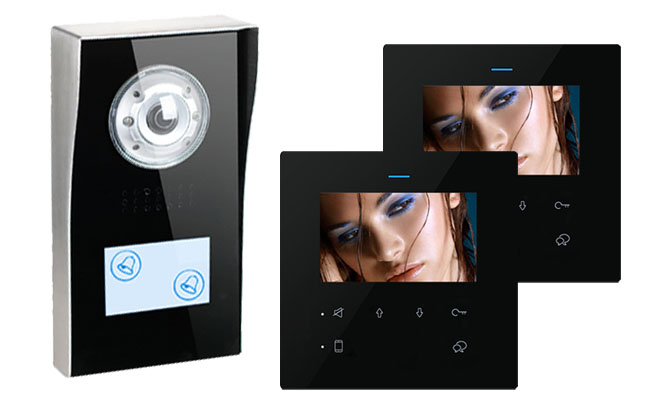

2-Flat Video Door Entry Kit DF4 with Black Doorbell Model DT594

DF4 4.3-inch digital screen. Full Duplex (2-way talking). Handsfree. Colour video

• Finish:Acrylic glass piano black • Dimensions: W138 x H138 x D13.8mm • Mounting type: surface mount • 12 ringtones • Check outside and talk to people outside at any time you wish to, even if no one rings the bell • Intercom function among all monitors in one flat/apartment



Model DT594 Piano Black finish, 105-degree viewing angle

• Finish: Acrylic glass piano black • Dimensions: W92 x H178 x D22mm • Mounting type: surface mount • Comes with Stainless Steel rain cover • Connects directly to up to 2 electric or electro-magnetic locks • Camera: new generation image sensor whide angle 105-degree, Adjustable • Night vision



PC9 Combo Intelligent power supply

• One per system is required • Multi protection: short circuit, overload, over voltage • Input Voltage: 100~240V 1.5A • Rated Output Voltage: DC 28V+/-2V • Rated Output Current: 1.5A



This system transmits video and audio through the power cable. No Polarity connection

• Recommended cables: Unshielded twisted pair, power flex multi-cores, speaker cable, CAT5/CAT6

• Minimum requirements 0.5mm cable up to 2mm (depends on distance)

• Working distances up to 150 metres between doorbell camera and power supply and another 150m between power supply and monitors



• Door Station Model DT594 Manual
• DF4 Monitor Manual
• DBC4F Distributor Manual
• PC9 PSU Manual
