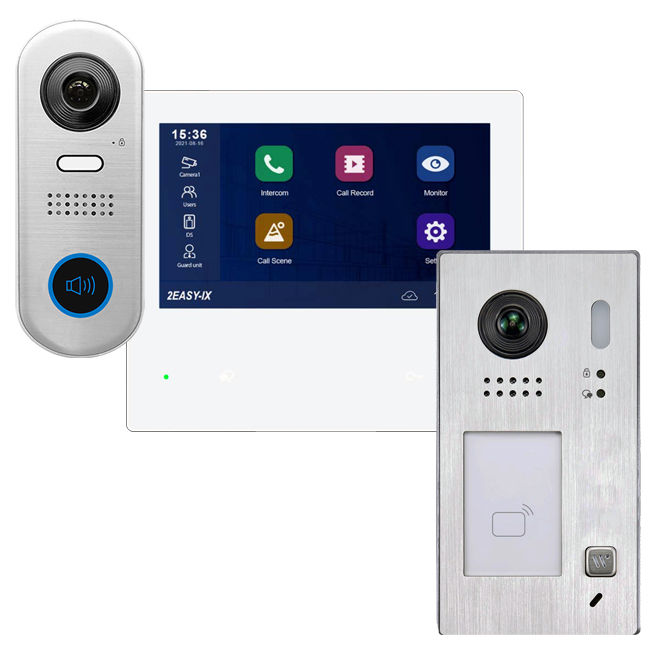

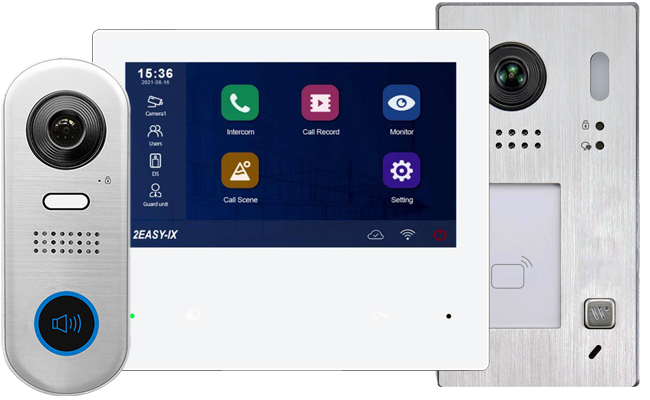

IX482 POE House Video Door Entry System Mobile App Bespoke

Discounts Apply !
Price: Please select an option
BIG WiFi Sale 20% Off
Free Shipping on Orders over £200

Highly versatile house system. Mainly self-configuring. Pure P-O-E (Power over Ethernet) connection

DIVERT CALLS TO YOUR SMARTPHONE!

You will need as MINIMUM:

  • • One Door Station, maximum 32
  • • One Video Monitor, maximum 32
  • • POE switch with number of ports equal number of items in the system
  • • Cable CAT/CAT6 with RG45 connector
  • • Compatible with IP CCTV cameras
  • • System maximum capacity: 32 video monitors, 32 x door stations
  • • Self-configuring setup
Product ID IX610IX482
Manufacturer 2 Easy





  •  Door Stations
  •  Monitors
  •  Connection
  •  Cabling
  •  APP
  •  Manuals
  •  Reviews
  •  Related

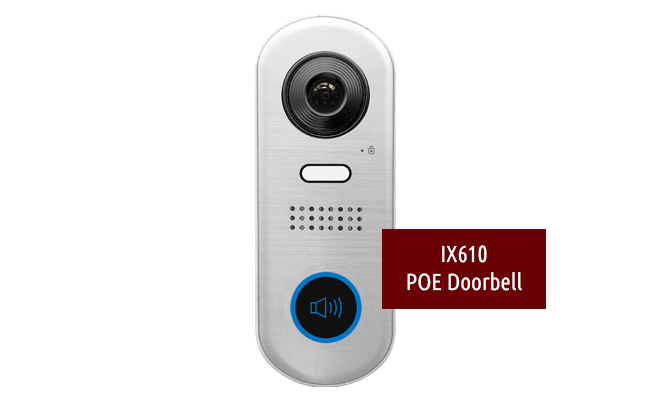

IX610 POE Video Door Station

• Finish: Aluminium • Dimensions: W60 x H160 x D31.5mm • Mounting type: surface mount • Connects directly to an electic lock. Magnetic lock requires additional power supply. Connect multiple locks with an additional RLC Lock Interface • Camera: 1/3.7" Ultra Sense, ISP with 77dB WDR Fisheye whide angle 170-degree • Night vision min LUX 5 • Voice enunciation function

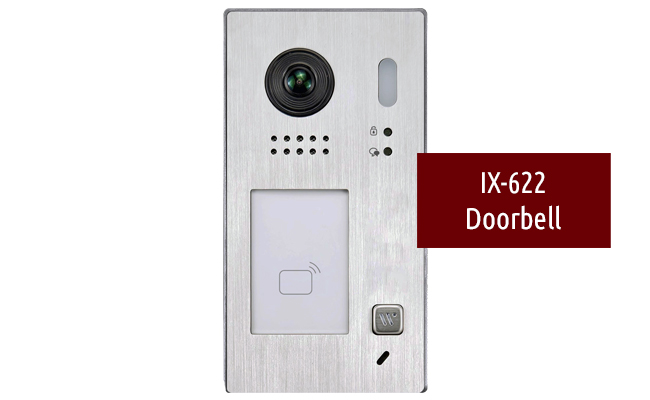

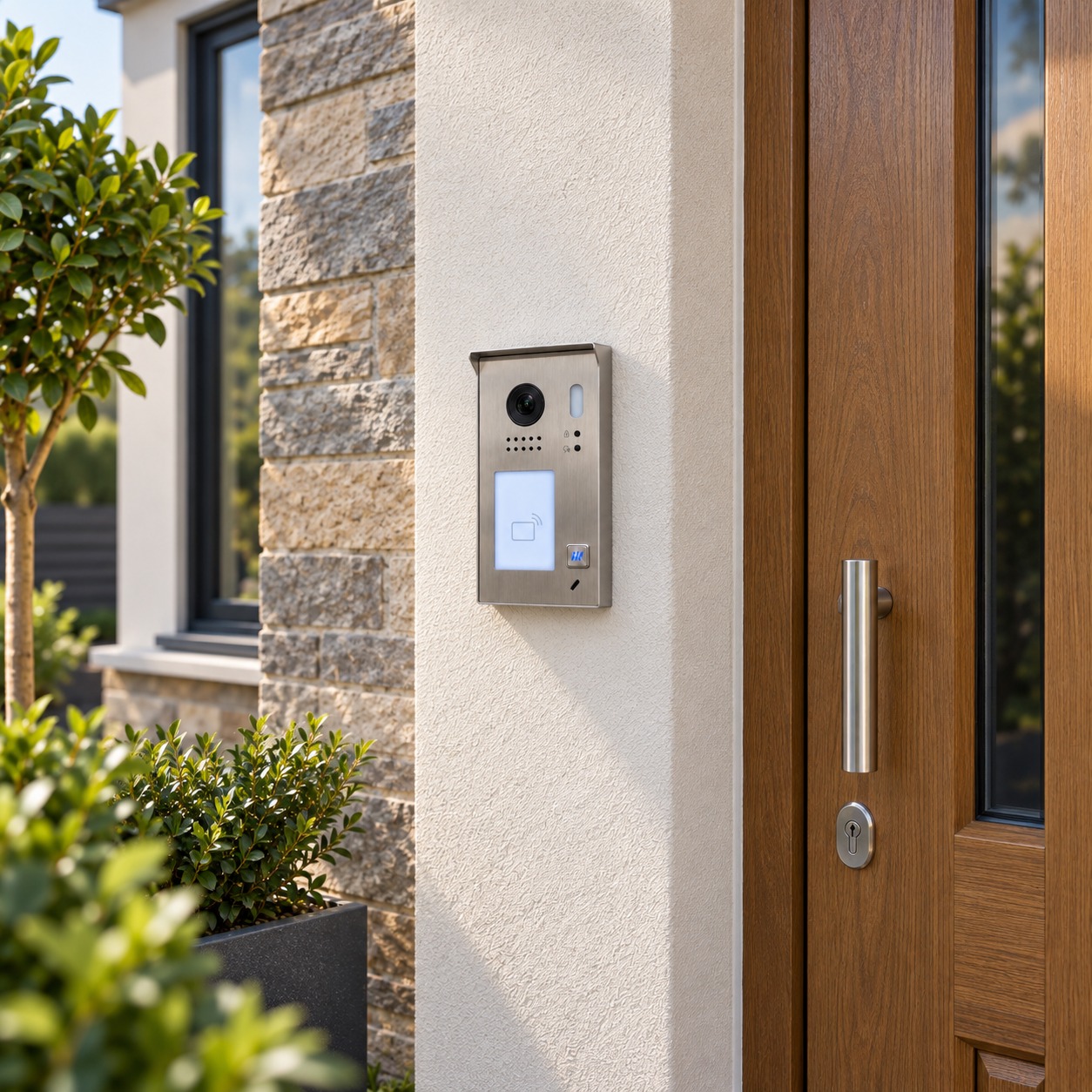

IX622 Proximity Reader POE Video Door Station

• Finish: Stainless Steel • Dimensions: W94 x H177 x D38mm • Mounting type: surface mount • Connects directly to an electic lock. Magnetic lock requires additional power supply. Connect multiple locks with an additional RLC Lock Interface • Camera: 2MP Fisheye whide angle 170-degree • Night vision Full Colour • Voice enunciation function • Come with 5 x Keyfobs



IX-482 Touch screen 7-inch. Built-in WiFi. Full Duplex (2-way talking). Acrylic glass finish. Handsfree. Colour video. This monitor connects to the broadband via WiFi to use call divert with App function

• Finish: Acrylic glass finish white • Dimensions: W159 x H185 x D18.5mm • Mounting type: surface mount • Resolution: 1024 x 600 pixels • 12 ringtones • Pan,Tilt and Zoom functions • Night Ring function • Clock and calendar • 'Do Not Disturb' function • Pictures and video of visitors stored • Intercom function

IX-482SE Touch screen 7-inch. Full Duplex (2-way talking). Acrylic glass finish. Handsfree. Colour video. This monitor requires hardwired connection to the router and public broadband to use call divert with App function

• Finish: Acrylic glass finish white • Dimensions: W159 x H185 x D18.5mm • Mounting type: surface mount • Resolution: 1024 x 600 pixels • 12 ringtones • Pan,Tilt and Zoom functions • Night Ring function • Clock and calendar • 'Do Not Disturb' function • Pictures and video of visitors stored • Intercom function



See here: IX-610 Wiring Diagram



This system transmits video and audio through the CAT5/CAT6 cable with RG45 connector. You will need additionally at least 21-port unmanaged POE switch IEEE 802.3af Class 0, Standard 48V-52V protocol PD

• Working distances up to 100 metres between door station and POE switch and another 100m between POE switch and monitors



For iPhone IOS search Apple store for VDP Connect

For Android click here: VDPConnect



Product Reviews
No Reviews For This Product.
Magnetic Lock SM-180 Fail Safe
Magnetic Lock SM-180 Fail Safe - £35.00

Magnetic lock. Power-Off-To Open. Power supply not included by default. Dimensions: Length: 204mm, Width: 33mm, Depth: 41mm

SB-150ST Surface Electric Bolt Lock Fail Safe
SB-150ST Surface Electric Bolt Lock Fail Safe - £40.00

Highly secure, quality electric bolt lock. Power-Off-To Open. Power supply NOT included by default. To use with door entry system extra power supply is required Dimensions: Length: 204mm, Width: 33mm, Depth: 41mm

Sesame SAGreen Exit Button with Breakable Glass
Sesame SAGreen Exit Button with Breakable Glass - £15.00

Sesame SAGreen Exit Button with Breakable Glass. Flush mount installation. Internal use only

Dimensions:88 x 88mm. NO/NC/COM/12V/GND

SB10 Stainless Steel Indoor Exit Button 86 x 86mm
SB10 Stainless Steel Indoor Exit Button 86 x 86mm - £20.00

Stainless steel. Flush mount installation. Internal use only

Dimensions: 86 x 86mm

Proximity Key Fobs Frequency 125khZ
Proximity Key Fobs Frequency 125khZ - £2.00

Replacement or additional Proximity key fobs for use with any Proximity Reader. Industry standard 125khZ.

Proximity Key Tags Frequency 125khZ
Proximity Key Tags Frequency 125khZ - £2.50

Replacement or additional Proximity key Tags for use with any Proximity Reader. Industry standard 125khZ.
