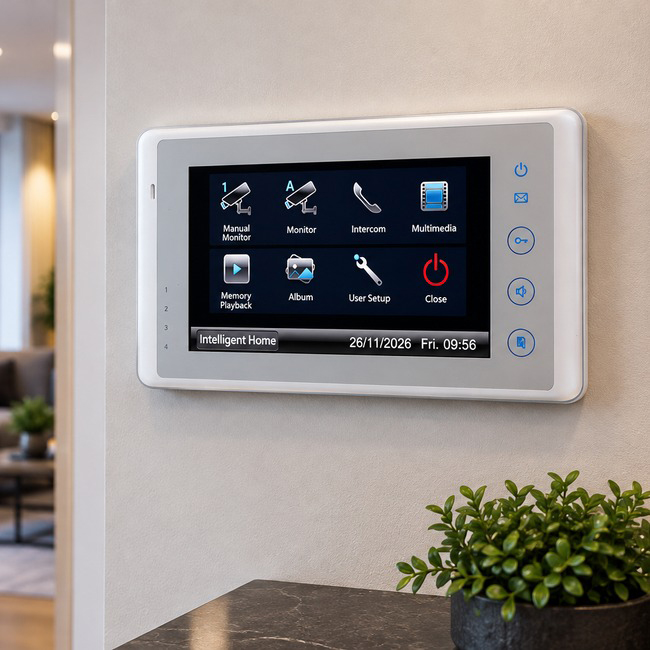

7-inch Touchscreen Recording Intercom Video Monitor.
Full-duplex (2-way) hands-free communication with colour video
Cronus 7" Touchscreen Monitor
| Screen |
7-inch TFT colour |
| Resolution |
800 × 480 pixels |
| Finish |
White with light grey frame |
| Dimensions |
W225 x H125 x D23mm |
| Mounting |
Surface mount |
| Recording |
800 pictures on internal memory. Up to 30K if SD card up to 16GB is installed |
| Voicemail function |
Photo frame fuction |
| Communication |
Full-duplex hands-free communication |
| Ringtones |
12 selectable ringtones |

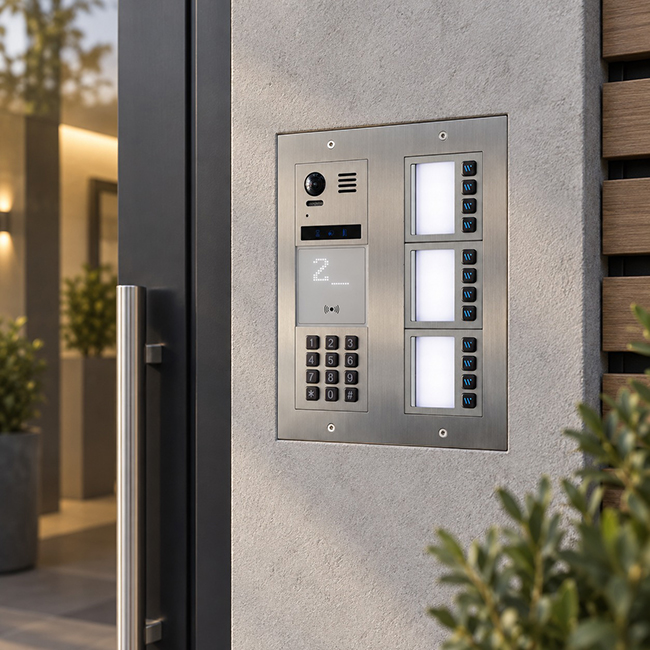

Video Door Station, 2MP wide-angle camera, full-colour night vision, keypad and built-in RFID proximity reader
Vulcan DT821 Modular Video Door Station
| Apartment Calling |
Two way of calling: Direct-call buttons or Dial via keypad
|
| Camera |
2.0 megapixel colour camera |
| Viewing Angle |
170° wide-angle lens |
| Night Vision |
Blak&white night vision |
| Access Control |
Built-in keypad & RFID proximity reader |
| Ringtone Options |
Voice enunciation, ringtone |
| Lock Outputs |
1 output for electric or electromagnetic locks |
| Finish |
Stainless steel housing |
| Dimensions |
W255 × H315 × D45 mm |
| Mounting |
Flush mount with wall box |
| Weather Protection |
IP65 |
Intelligent power supply for the 2-wire door entry system,
providing stable system power with built-in electrical protection
PC7H Intelligent Power Supply
| Input Voltage |
100–240V AC |
| Output Voltage |
DC 28V ±2V |
| Output Current |
1.3A |
| Protection |
Short-circuit, overload and over-voltage protection |
| System Requirement |
1 power supply required per system |
Star-connection wiring allows individual cable runs from the central distribution point to each apartment monitor
Victor System Connection Diagram
Star Connection – Up to 32 Monitors
View the full-size wiring diagram for system connection and monitor distribution
VIEW CONNECTION DIAGRAM →
Simple 2-wire non-polarity installation.
Video, audio and system power are carried over the 2-wire bus,
allowing flexible cable options and long installation distances
2-Wire Cabling & Installation
| Wiring |
2-wire non-polarity connection |
| Recommended Cable |
Unshielded twisted pair, power flex multi-core, speaker cable or CAT5/CAT6 |
| Cable Size |
0.5 mm to 2 mm depending on cable distance |
| Door Station to PSU |
Up to 150 m depending on cable type and conductor size |
| PSU to Monitors |
Up to 150 m depending on cable type and conductor size |
Product manuals and technical information for the main components supplied with this door entry system
Product Manuals & Technical Information
